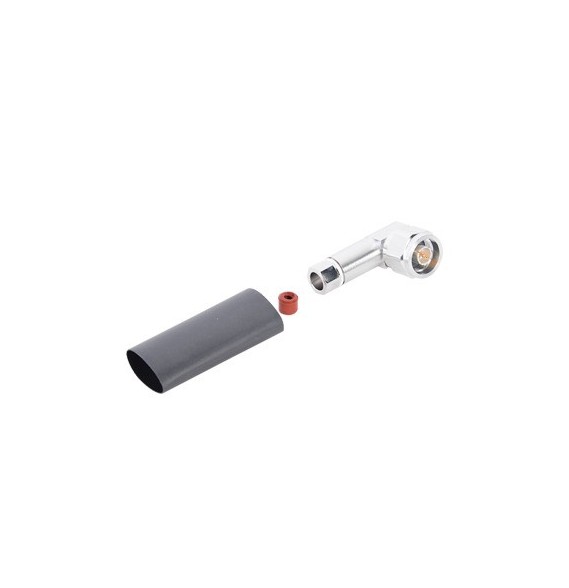

ANDREW / COMMSCOPE F1TNRHC F1TNR-HC Conector N Macho en ángulo recto para cable FSJ1-

F1TNRHC Conector N Macho en angulo recto para cable FSJ1-50A F1TNR-HC

General Specifications
Interface N Male
Body Style Right angle
Brand HELIAX®
Mounting Angle Right angle

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 6000 MHz
Cable Impedance 50 ohm
3rd Order IMD typical 112
dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm carriers
RF Operating Voltage maximum (vrms) 565.00 V
dc Test Voltage 1600 V
Outer Contact Resistance maximum 0.25 mOhm
Inner Contact Resistance maximum 1.00 mOhm
Insulation Resistance minimum 5000 MOhm
Average Power 0.4 kW @ 900 MHz
Peak Power maximum 6.40 kW
Shielding Effectiveness 110
dB


F1TNR-HC Conector N Macho en angulo recto para cable FSJ1-50A F1TNRHC
