ALVARION WCPE24DZR WCPE-24-DZR Repetidor de Señal Doble Zona de Wavion ideal para cub

ALVARION WCPE24DZR WCPE-24-DZR Repetidor de Señal Doble Zona de Wavion ideal para cub

ALVARION WCPE24DZR WCPE-24-DZR Repetidor de Señal Doble Zona de Wavion ideal para cubrir zonas con baja señal en interiores.

ALVARION
WCPE24DZR
$2,577.35
IVA incluido
Agotado

  Política de seguridad

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de entrega

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de devolución

(editar con el módulo de Información de seguridad y confianza para el cliente)

WCPE24DZR Repetidor de Senal Doble Zona de Wavion, ideal para cubrir zonas con baja senal en interiores. WCPE-24-DZR

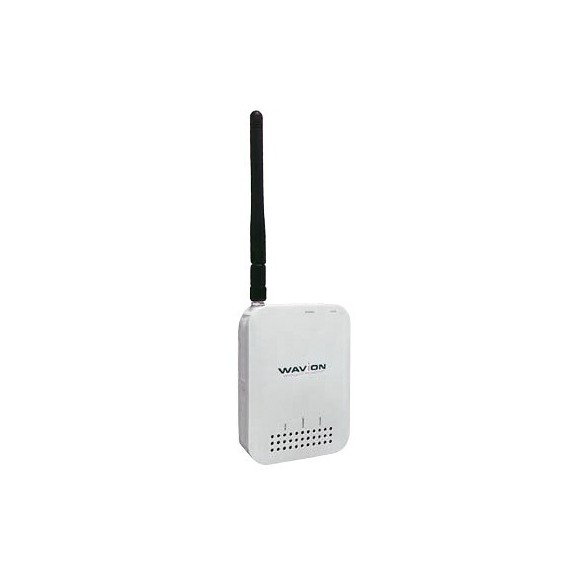

Wavion WCPE-24DZ-SR is an indoor dual zone CPE for residential wireless broadband access.

The WCPE-24DZ-SR provides an extended and ubiquitous indoor coverage in a cost-effective price. The device is compact and easily self-installed enabling also simple window mount.

As part of Wavion's end-to-end-solution the WCPE-24DZ-SR provides seamless dual zone connectivity - on one side to the Wavion base station and on the other side to the customer's PC or laptop throughout the customer's premise.

This dual zone capability simplifies the project roll out and enables product sales directly to the end user through retail stores. The WCPE-24DZ-SR full indoor coverage is achieved due to its high transmission power and sensitivity and due to its repeater functionality which extends

the Wavion's base station coverage to all the rooms in the customer's premise.

The WCPE-24DZ-SR is a key part of Wavion's residential wireless broadband solution.

Together with the WBS-2400 the WCPE-24DZ-SR creates a highly cost-effective solution with unparalleled coverage and capacity.
General product details

Standards; Wireless: IEEE 802.11b/g/n
                Channel Bandwidth 20Mhz 40Mhz for 802.11n
Data Rate; 802.11b: Up to 11Mbps
                802.11g: 54Mbps
                802.11n: 300 Mbps
Memory; 32MB SDRAM
            16MB Flash
Interface; 1 port 10/100 Ethernet ports with auto-sensing MDIX
Antenna Type; 2 x 2.4Ghz 5dBi with RP-SMA connector
Frequency Range; 2400~2484 MHz (North America)
Channel; 1~11 channels (North America)
Emission Type; DSSS/OFDM
Total EIRP*; 34 dBm (OFDM CCX and HT20/40 @ MCS0)
Sensitivity for 802.11b/g/n (typically @PER < 10% packet size 1024 @25ºC +/- 5ºC)  802.11b:    1Mbps: -101dBm
                11Mbps: -91dBm
                802.11g:
                6Mbps: -95dBm
                54Mbps: -81dBm
                802.11n HT20:
                MCS0: -94dBm
                MCS7: -78dBm
                MCS8: -94dBm
                MCS15: -75dBm
                802.11n HT40:
                MCS0: -93dBm
                MCS7: -75dBm
                MCS8: -91dBm
                MCS15: -72dBm
HARDWARE

LEDs status; Power/ Status LAN WLAN Signal strength
Data modulation type; BPSK QPSK CCK and OFDM
Power Supply; 12V 1A  PoE
Security; Open  WEP (64-bit / 128-bit)  WPA and WPA2 - personal
Management; SNMPv2c  Standard HTTP/HTTPS
QoS; WMM classification  DSCP and P-Bit 802.1P classification
Protection mode; CTS-RTS  Self-CTS  RTS threshold
Tunneling; PPPoE  VPN pass-through  IPSec  L2TP
Filtering; Support MAC ACL
Traffic shaping; Downlink and uplink bandwidth control

Client Stations Supported;  10
ENVIROMENTAL SPECIFICATIONS

Humidity; 5%~98% non-condensing
Operating temperature; 0°C ~ +40°C
Storage; -10°C ~ +65°C
APROVALS AND CERTIFICATIONS
FCC CFR 47 part 15
ETSI EN300328 EN301489
CE ROHS WEEE
Wi-Fi Certification

WCPE-24-DZR Repetidor de Senal Doble Zona de Wavion, ideal para cubrir zonas con baja senal en interiores. WCPE24DZR
