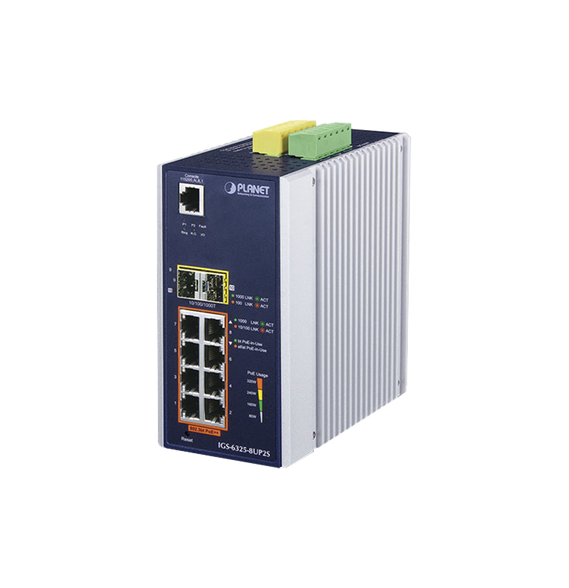

PLANET IGS63258UP2S IGS-6325-8UP2S Switch Industrial Administrable Capa 3 8 Puertos G

IGS63258UP2S Switch Industrial Administrable Capa 3, 8 Puertos Gigabit PoE 802.3bt+, 2 Puertos 1 G / 2.5 G SFP+ IGS-6325-8UP2S

802.3bt PoE ++: 90 ~ 95 W sobre una solución UTP de 4 pares

Para satisfacer la demanda de varios dispositivos alimentador por PoE se proporciona cinco modos de salida de energía PoE

• Modo de salida de potencia PoE ++ de 90 W 802.3bt (pines 1 2 3 6 + pines 4 5 7 8)
• Modo de salida de potencia UPOE / PoH de 95 W (pines 1 2 3 6 + pines 4 5 7 8)
• Modo de salida de potencia PoE de 30 W de final de tramo (pines 1 2 3 6)
• Modo de salida de potencia PoE de 30 W de alcance medio (pines 4 5 7 8)
• Modo de salida de potencia de 60 W (pines 1 2 3 6 + pines 4 5 7 8)

Monitoreo de la PD conectada en tiempo real a través de la acción de ping.

Programa de PoE para ahorro de energía

Reciclado de energía programado

Protocolo de tiempo 1588 para redes de computación industrial

La serie IGS-6325 es ideal para aplicaciones de telecomunicaciones y Carrier Ethernet ya que admite la prestación de servicios MEF y la temporización sobre soluciones de paquetes para IEEE 1588 y Ethernet síncrona.

Alerta de evento de captura SMTP / SNMP

Alerta de alarma efectiva para una mejor protección

Entrada digital y salida digital para alarma externa

Hardware Specifications
Copper Ports	8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports	2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10) Compatible with 100BASE-FX SFP and 2500BASE-X SFP
SFP+ Ports	N/A
PoE Injector Ports	8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console	1 x RJ45-to-RS232 serial port (115200 8 N 1)
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps/non-blocking
Throughput (packet per second)	14.8Mpps@ 64 bytes packet
Address Table	16K entries automatic source address learning and aging
Shared Data Buffer	32Mbits
Jumbo Frame	10Kbytes
SDRAM	512Mbytes
Flash Memory	64Mbytes
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
Reset Button	< 5 sec: System reboot > 5 sec: Factory default
Connector	Removable 6-pin terminal block for power input ?Pin 1/2 for Power 1 Pin 3/4 for fault alarm Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface ?Pin 1/2 for DI 1 & 2 Pin 3/4 for DO 1 & 2 Pin 5/6 for GND
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)	2 digital input: ?Level 0: -24~2.1V (±0.1V) ?Level 1: 2.1~24V (±0.1V) ?Input load to 24V DC 10mA max.
Digital Output (DO)	2 digital output: ?Open collector to 24VDC 100mA
Enclosure	IP30 aluminum case
Installation	DIN-rail or wall mounting
Dimensions (W x D x H)	76.8 x 107.3 x 152 mm
Weight	1 138g
Power Requirements	Dual DC 48~56V 7.5A max. (>52V DC for 802.3bt PoE++ output recommended)
Power Consumption	Max. 27 watts/92.13BTU@56V DC input (System on) Max. 395 watts/1 347.80BTU@56V DC input (Full loading with 802.3bt PoE++ function)
ESD Protection	Air 8KV DC Contact 6KV DC
Surge Protection	4KV DC
LED Indicator	System: ?Power 1 (Green) Power 2 (Green) ?Fault Alarm (Red) ?Ring (Green) Ring Owner (Green) ?DIDO (Red) Per 10/100/1000T RJ45 PoE++ Port: ?1000Mbps LNK/ACT (Green) ?10/100Mbps LNK/ACT (Amber) ?802.3bt PoE++-in-use x 1 (Green) ?802.3at/af PoE-in-use x 1 (Amber) Per SFP Interface: ?1000 LNK/ACT (Green) ?100 LNK/ACT (Amber) Per SFP+ Port: ?10Gbps LNK/ACT (Green) ?1Gbps LNK/ACT (Amber PoE Usage: ?80W 160W 240W 320W (Amber)
Power Over Ethernet
PoE Standard	IEEE 802.3bt PoE++ Type-4 PSE Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type	? 802.3bt ? UPOE/POH ? End-span ? Mid-span ? Force
PoE Power Output	802.3bt PoE++ ?- Per port 52V~56V DC (depending on the power supply) max. 90 watts UPoE(PoH) ?- Per port 52V~56V DC (depending on the power supply) max. 95 watts IEEE 802.3at Standard ?- Per port 52V~56V DC (depending on the power supply) max. 36 watts Force ?- Per port 52V~56V DC (depending on the power supply) max. 60 watts
Power Pin Assignment	End-span: 1/2(-) 3/6(+) Mid-span: 4/5(+) 7/8(-) 802.3bt/UPoE: 1/2(-) 3/6(+) 4/5(+) 7/8(-)
PoE Power Budget	360W maximum (depending on power input)
PoE Ability PD @ 12.5 watts	8 units
PoE Ability PD @ 25 watts	8 units
PoE Ability PD @ 51 watts	6 units
PoE Ability PD @ 71 watts	4 units
PoE Management Functions
Active PoE device alive detects	Yes
PoE Power Recycle	Yes daily or predeinded schedule
PoE Schedule	4 schedule profiles
PoE Extend Mode	Yes max. 160 to 200 meters
PoE System Management	System PoE Admin control Total PoE power budget control Auto power input and PoE budget control PoE Legacy mode Over-termperature threshold alarm PoE usage threshold alarm
PoE Port Management	Port Enable/Disable/Schedule PoE mode control - 802.3bt - UPoE - 802.3at End-span - 802.3at Mid-span Force mode Port Priority
Layer 2 Functions
Port Configuration	Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control
Port Status	Display each port’s speed duplex mode link status flow control status auto negotiation status trunk status
Port Mirroring	TX/RX/both Many-to-1 monitor
VLAN	802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 256 VLAN groups out of 4095 VLAN IDs
Link Aggregation	IEEE 802.3ad LACP/static trunk Supports 3 trunk groups with 4 ports per trunk group
Spanning Tree Protocol	IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol
IGMP Snooping	IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups
MLD Snooping	IPv6 MLD (v1/v2) snooping IPv6 MLD querier mode support Supports 255 MLD groups
Access Control List	IP-based ACL/MAC-based ACL ACL based on: ?- MAC Address ?- IP Address ?- Ethertype ?- Protocol Type ?- VLAN ID ?- DSCP ?- 802.1p Priority Up to 256 entries
Bandwidth Control	Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps
QoS	Traffic classification based strict priority and WRR 8-level priority for switching ?- Port number ?- 802.1p priority ?- 802.1Q VLAN tag ?- DSCP/TOS field in IP packet
Synchronization	IEEE 1588v2 PTP(Precision Time Protocol) ?- Peer-to-peer transparent clock ?- End-to-end transparent clock
Layer 3 Functions
IP Interfaces	Max. 128 VLAN interfaces
Routing Table	Max. 128 routing entries
Routing Protocols	IPv4 hardware static routing IPv6 hardware static routing OSPFv2 dynamic routing
Management
Basic Management Interfaces	Console; Telnet; Web browser; SNMP v1 v2c
Secure Management Interfaces	SSHv1/SSHv2 TLS SSL SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility
SNMP MIBs	RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1 2 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A CE: EN55032 EN55035
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management (CFM) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC& IGS-6325-8UP2S Switch Industrial Administrable Capa 3, 8 Puertos Gigabit PoE 802.3bt+, 2 Puertos 1 G / 2.5 G SFP+ IGS63258UP2S 14-11-2024 11:23:02 SSN14 U-0 Marca PLANET Referencia IGS63258UP2S 6 otros productos de la misma categoría: ¡En oferta! Nuevo Agotado  Vista rápida Ver Detalles PLANET IGS12040MT IGS-12040MT Switch Industrial Administrable de 8-Puertos... $11,982.14 ¡En oferta! Nuevo  Vista rápida Ver Detalles PLANET IGS52254P2S IGS-5225-4P2S Switch Industrial Administrable Capa 2 4... $7,740.60 ¡En oferta! Nuevo Agotado  Vista rápida Ver Detalles ALLIED TELESIS ATIE22010GHX980 AT-IE220-10GHX-980 8x 10/100/1000T 2x 1G/10G... $26,399.39 ¡En oferta! Nuevo Agotado  Vista rápida Ver Detalles CAMBIUM NETWORKS CCADVUPGXV221X3 CCADV-UPG-XV2-21X-3 CAMBIUM CARE ADVANCED... $640.07 ¡En oferta! Nuevo Agotado  Vista rápida Ver Detalles CAMBIUM NETWORKS WB3657A WB-3657A WB3657A - LPU END KIT PTP800 (1 kits... $16,936.29 ¡En oferta! Nuevo Agotado  Vista rápida Ver Detalles ALLIED TELESIS ATIS23010GP80 AT-IS230-10GP-80 Switch Industrial PoE+... $47,621.31 Anterior Siguiente close
