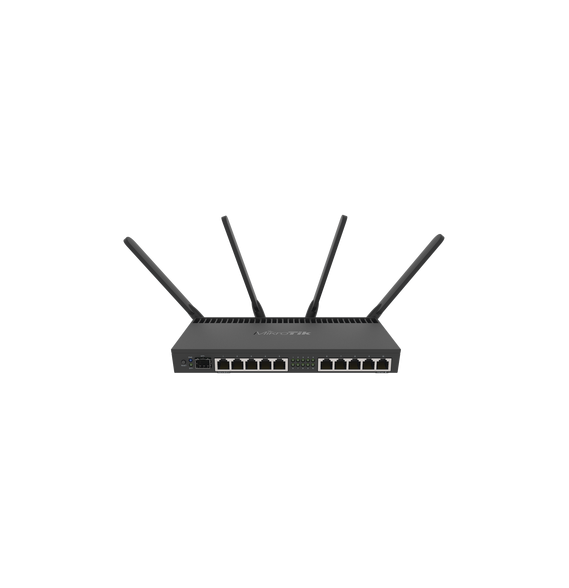

MIKROTIK RB4011IGSPLUS5HACQ2HNDIN RB4011IGSPLUS5HACQ2HND-IN Router con Wi-Fi 4x4 MU-M

RB4011IGSPLUS5HACQ2HNDIN Router con Wi-Fi 4x4 MU-MIMO, hasta 2 watts de potencia, antenas de 3 dBi, 10 puertos Gigabit, 1 Puerto SFP+ RB4011IGSPLUS5HACQ2HND-IN

El RB4011 posee un poderoso CPU quad core Cortex A15. El CPU soporta la aceleracion por hardware para IPsec.

En adicional tiene 10 puertos de 1 Gbps en ethernet y el equipo cuenta con Wave-2 MU-MIMO 4x4.


Características principales de RouterOS

Especificaciones

Details
Product code	RB4011iGS+5HacQ2HnD-IN
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Dimensions	228 x 120 x 30 mm
License level	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
Tested ambient temperature	-40°C .. +45°



Alimentación

Details
PoE in	802.3af/at
PoE out	Passive PoE up to 57V
PoE in input Voltage	18-57 V
Number of DC inputs	2 (DC jack PoE-IN)
DC jack input Voltage	12-57 V
Max out per port output (input > 30 V)	420 mA
Max out per port output (input < 30 V)	600 mA
Max total out (A)	600 mA
Max power consumption (W)	55
Max Power consumption	26W



Wireless

Details
Wireless 5 GHz number of chains	4
Wireless 5 GHz standards	802.11ac
Antenna gain dBi for 5 GHz	3
Wireless 5 GHz chip model	QCA-9984
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	3
Wireless 2.4 GHz chip model	R11e-2HnD



Ethernet

Details
10/100/1000 Ethernet ports	10



Fiber

Details
SFP+ ports	1



Peripherals

Details
MiniPCI-e slots	1
Serial port	RJ45



Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes



Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	33	-96
54MBit/s	29	-81
MCS0	33	-96
MCS7	28	-77
MCS9	26	-72



2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	28	-100
11MBit/s	28	-94
6MBit/s	29	-96
54MBit/s	25	-80
MCS0	26	-96
MCS7	24	-79



Included parts



•
  24V 2.5A power adapter
•
  IEC cord
